JMS-10-MDT

10m3/s Mobile, Diesel, Track Dust Collector

JMS-10-MDT. Overview.

The JMS-10-MDT (Mobile, Diesel, Track) is a complete dust collection system mounted on a compact, track base. It features a dirty air intake, filter house, clean air box, silencer, exhaust, dust discharge system and centrifugal fan mounted on a single manoeuvrable track base to create 10m3/s (20,000CFM) @ -3kPa.*

The JMS-10-MDT is able to move and operate alongside excavation equipment, such as road headers, surface miners, profilers, and trenchers. Track units offer full mobility with variable speeds between 2-4 kph to increase the speed and efficiency of operations.

Within our rental fleet we have JMS-10-MDT units available for short-medium-long-term hire.

JMS 10 M-Series. Range Options.

JMS 10 M-Series Dust Collector

JMS-10-MES-SL (Mobile, Electric, Skid – Slimline)

JMS-10-MDT (Mobile, Diesel, Track)

Mobility. Track Mounted.

The JMS-10-MDT tracks are hydraulically powered by the T4F/5 diesel engine and operated via remote control. (Umbilical control is also provided as a failsafe.)

Track mounted units key advantages:

  1. Units can be easily transported and operational in a very short period, with limited set-up requirements.
  2. The diesel motor powering the fan means there is no requirement for an external power supply, such as a mains connection or auxiliary power units.
  3. Units can be easily moved during operation. Moving alongside dust generating equipment, such as road headers and machines used for bench excavation and cross passages provides effective dust collection at source.
  4. Units do not require long, expensive ducting to be constructed/installed.
  5. Units offer full mobility and better control with variable speeds between 2–4 kph to increase the speed and efficiency of operations.

Power. Diesel.

The JMS-10-MDT uses a T4F/5 diesel engine to power the hydraulic pumps which drive the centrifugal exhaust fan, tracks, auger, rotary valve discharge system and screw compressor.

Size. Key Dimensions.

  • Height: 3,360mm
  • Width: 2,540mm
  • Length: 7,420mm
  • Mass: 8t

JMS-10-MDT. Key Features.

Air Volume:

10m3/s (20,000 CFM)

Centrifugal Fan Power:

90kW

Power:

Kohler T4F/5 Diesel

Air Intakes:

Single: 1 x 800mm plus 3 x 508mm Ø

Filtration System:

Filters: 18
Filter Surface Area: 486m2
Filtration Efficiency: 99.99% at 0.067 micron

Dust Discharge System:

Hydraulic Reversible Auger
Front Facing Incline Auger

Control and Monitoring System:

CANbus PLC
10″ Touch-Button Display

Safety Features:

E-STOP plus Emergency Stop Lanyard System
Optional Extra: Proximity Sensors

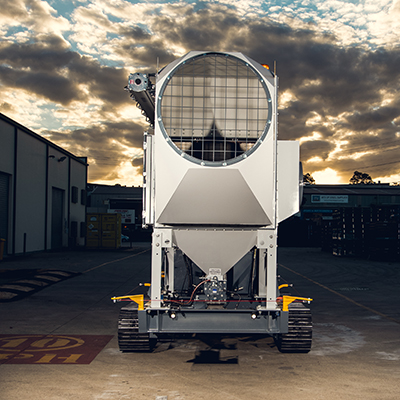

JMS-10-MDT Mobile Diesel Track Dust Collector

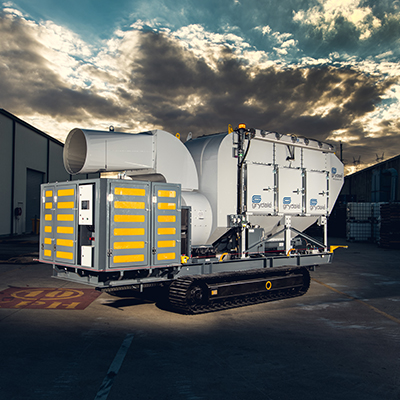

JMS-10-MDT Mobile Diesel Track Dust Collector

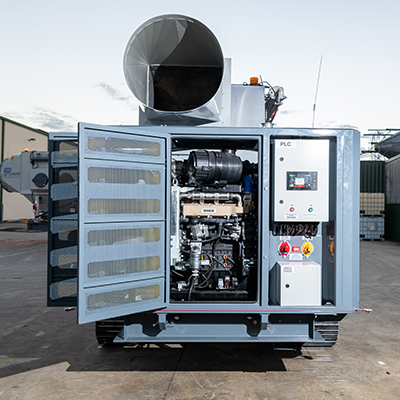

JMS-10-MDT Mobile Diesel Track Dust Collector

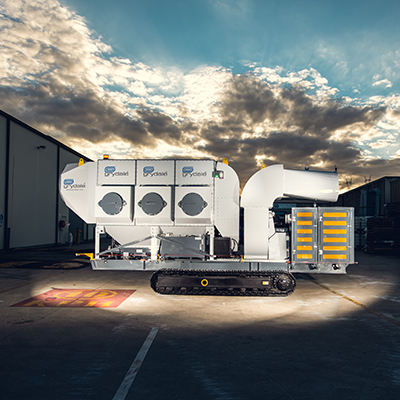

JMS-10-MDT Mobile Diesel Track Dust Collector

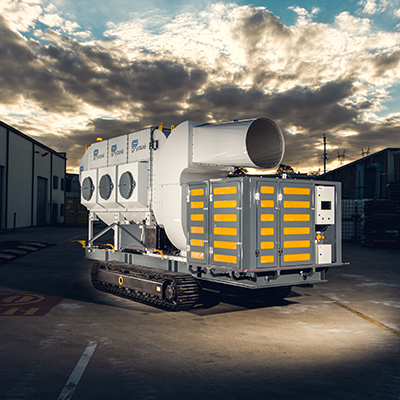

JMS-10-MDT Mobile Diesel Track Dust Collector

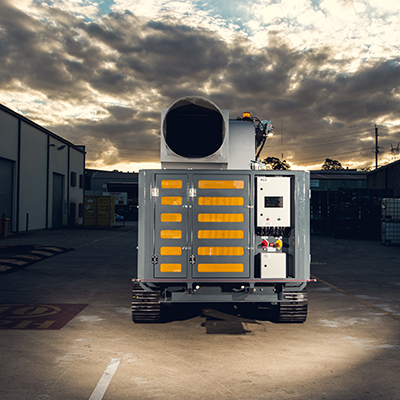

JMS-10-MDT Mobile Diesel Track Dust Collector
