JMS-10-MES
10 m3/s (20,000 CFM) Mobile, Electric, Skid Dust Collector
JMS-10-MES. Overview.
The JMS-10-MES is a complete dust collection system, featuring a single air intake, filter house, clean air box, silencer, exhaust, centrifugal fan and dust discharge system mounted on a drag skid base. The centrifugal exhaust fan creates 10 m³/s (20,000 CFM) at -4.5 kPa.
Efficiency. Power.
One of the key features of the JMS-10-MES is the inclusion of a Variable Frequency Drive (VFD) as part of the standard configuration. The VFD ensures the dust collector provides the required air flow using the least power. If there is insufficient airflow, the airflow meter on the dust collector will turn up the VFD to generate more air volume. Equally, the airflow meter will turn down the VFD so the dust collector uses less kW for the same volume, depending on the temperature and conditions. This makes the unit’s power efficient, and clients have reported they have been able to reduce their power consumption by up to 40%.
Investment Options. Purchase or Rental.
We can offer purchase and rental opportunities for short-medium-long-term hire.
JMS 10 M-Series. Range Options.
JMS-10-MES
(10 m3/s, (20,000 CFM) Mobile, Electric, Skid)
Mobility. Electric Skid.
The JMS-10-MES (10 m3/s, Mobile, Electric, Skid) dust collector is a complete dust collection system mounted on a compact, skid base.
Dust collectors mounted on a skid base offer a cost-effective option when dust collection needs are relatively static. The skid can be dragged into position using the four rigging mounts at each end of the machine or moved by crane using the four lifting lugs.
When units need to be repositioned there is limited downtime in construction works as the complete unit can be moved easily.
Power. Electric.
The JMS-10-MES uses 415 V-3Ph-50 Hz to power the 75 kW (100 hp) centrifugal exhaust fan.
Size. Key Dimensions.
- Height: 2,970 mm (116.9 in)
- Width: 1,850 mm (72.8 in)
- Length: 7,750 mm (305.1 in)
- Mass: 5,500 kg
JMS-10-MES. Key Features.
Air Volume:
10 m3/s (20,000 CFM)
Centrifugal Fan:
75 kW (100 hp)
Power:
415 V-3Ph-50 Hz Electric
Variable Frequency Drive (VFD)
Air Intakes:
Front Air Intake: Ø 800 mm (31.5 in)
Optional Extra – Side Air Intakes: 3 x Ø 508 mm (20 in)
Filtration System:
Filters: 18
Filter Surface Area: 486 m2 (5,231 ft2)
Filter MERV Rating: 15
(see Note 1)
Dust Discharge System:
Hydraulic Reversible Incline Auger
Auger Orientation: Front Only
Control and Monitoring System:
CANbus PLC
Touch Screen Display
Safety Features:
2 x Emergency Stops
Emergency Stop Lanyard System
Note 1: During normal operation dust collectors achieve a filtration efficiency better than installed filter MERV rating due to dust cake build-up on filter media. Dust cake efficiency is dependent on dust type, particle sizes etc. Efficiencies of 99.99% at 0.067 micron have been achieved.

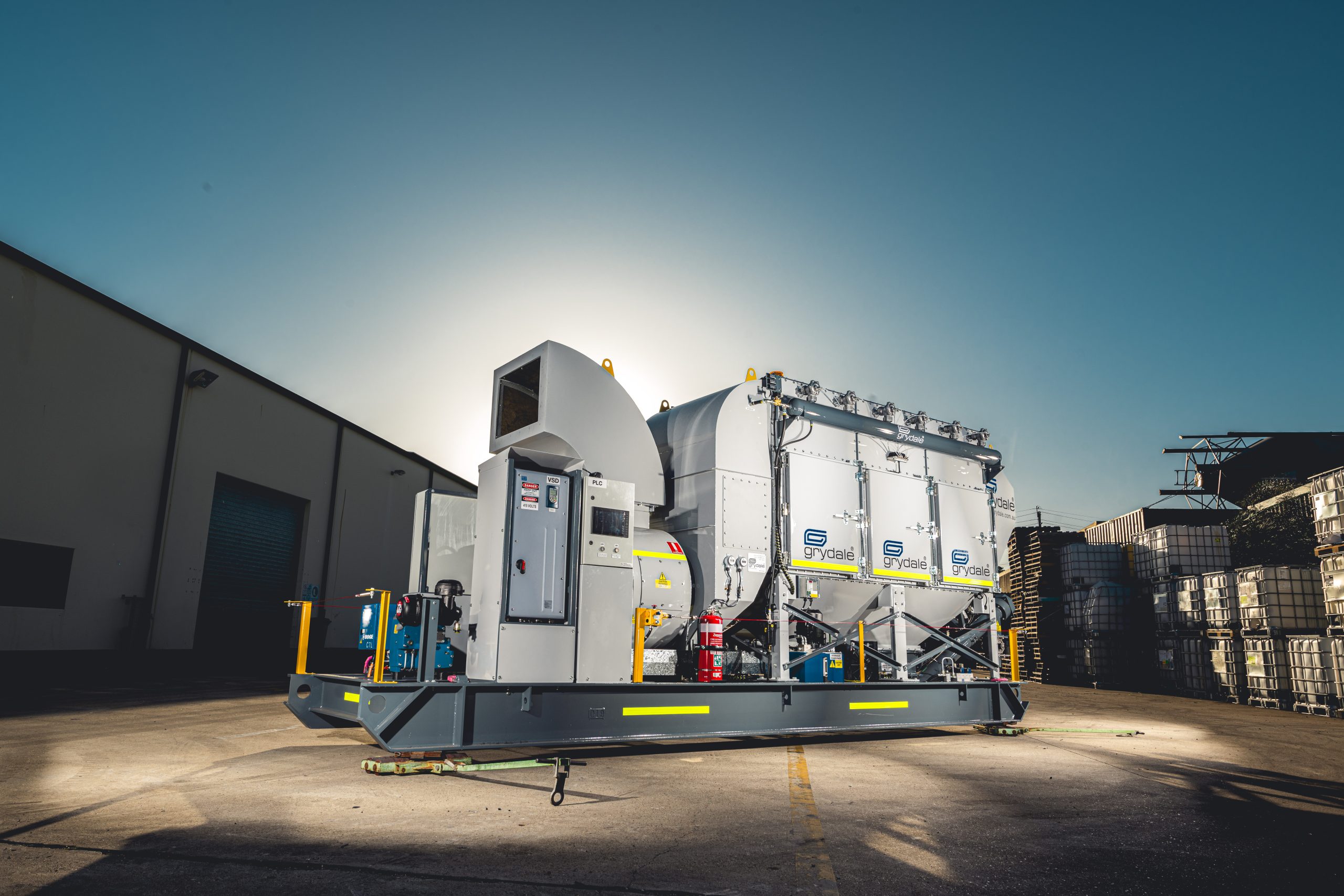

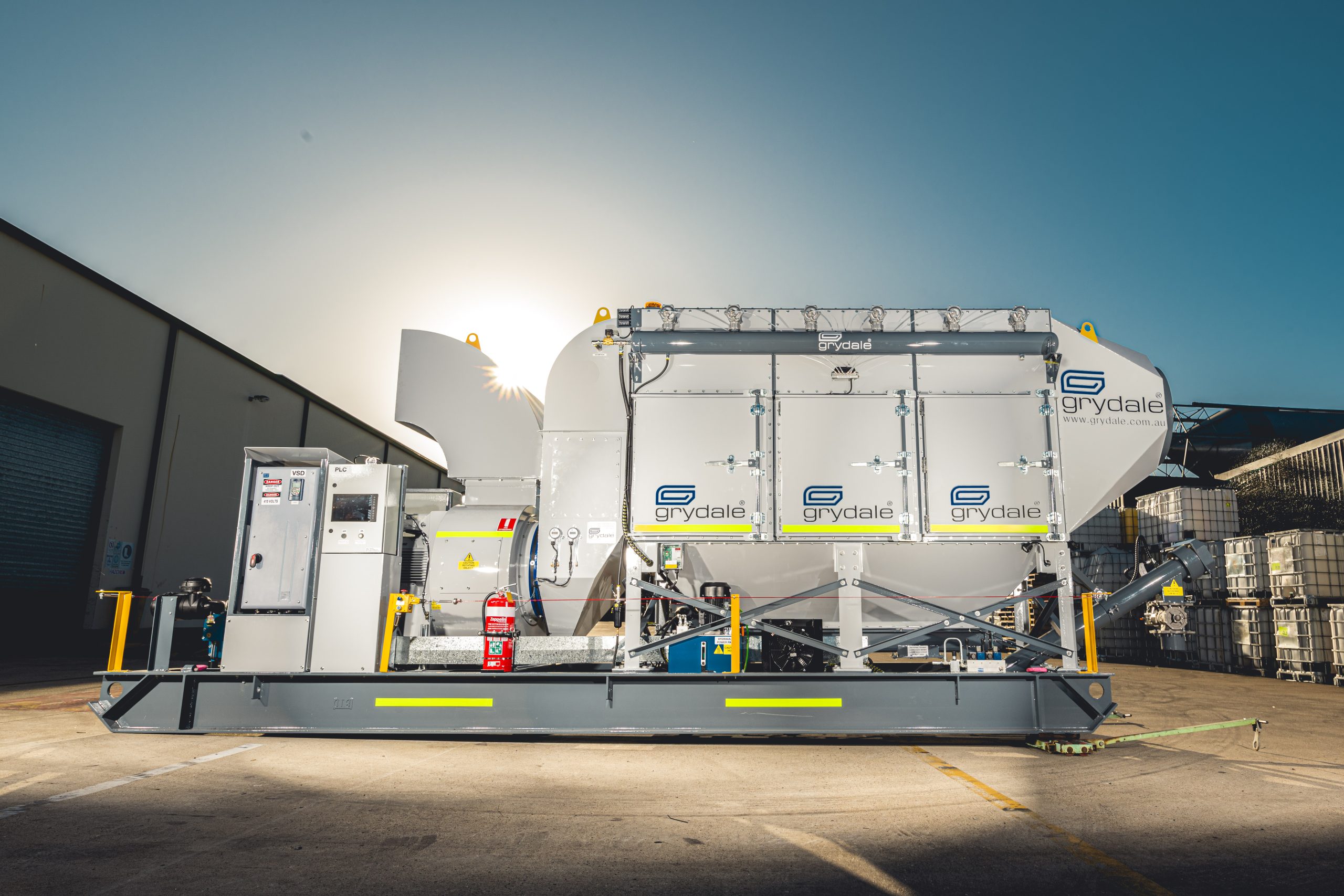

JMS-10-MES. Image Gallery.
