JMS-10-MES (Tall)

10m3/s Mobile, Electric, Skid Dust Collector

JMS-10-MES (Tall). Overview.

The JMS-10-MES (Tall) (Mobile, Electric, Skid) is a complete dust collection system mounted on a compact, skid base. It features a dirty air intake, filter house, clean air box, silencer, exhaust, dust discharge system and 37kW centrifugal fan mounted on a single manoeuvrable drag skid base to create 10m3/s (20,000CFM) @ -3kPa.* When units need to be repositioned there is limited downtime in construction works as the complete unit can be moved easily.

Within our rental fleet we have JMS-10-MES (Tall) in Stainless Steel available short-medium-long-term hire.

JMS 10 M-Series. Range Options.

JMS 10 M-Series Dust Collector

JMS-10-MES (Tall) (Mobile, Electric, Skid)

JMS-10-MES-XP (Mobile, Electric, Skid – Cross Passage)

JMS-10-MES-SL (Mobile, Electric, Skid – Slimline)

JMS-10-MDT (Mobile, Diesel, Track)

Mobility. Electric Skid.

The JMS-10-MES (Tall) 10m3/s (20,000CFM) Mobile, Electric, Skid dust collector offers a cost-effective option when dust collection needs are relatively static. The skid can be dragged into position using the four rigging mounts at each end of the machine or moved by crane using the four lifting lugs.

Power. Electric.

The JMS-10-MES (Tall) uses 380-480V to power the 37kW centrifugal exhaust fan.

Size. Key Dimensions.

  • Height: 3,320mm
  • Width: 2,490mm
  • Length: 4,640mm (with front discharge auger)
  • Mass: 4t

JMS-10-MES. Key Features.

Air Volume:

10m3/s (20,000 CFM)

Centrifugal Fan:

37kW

Power:

380-480V Electric

Air Intakes:

Option 1: 1 x 800mm Ø
Option 2: 2 x 350mm Ø

Filtration System:

Filters: 16
Filter Surface Area: 432m2
Filtration Efficiency: 99.99% at 0.067 micron

Dust Discharge System:

Front Incline Screw Auger

Control and Monitoring System:

CANbus / Allen Bradley PLC

Safety Features:

2 x Emergency Stops

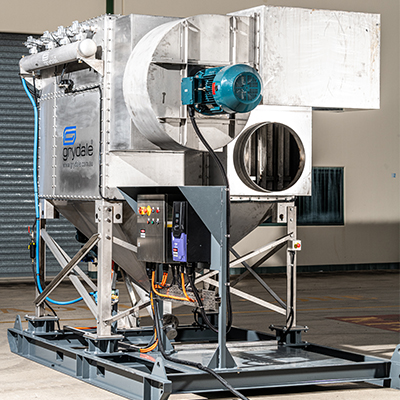

JMS-10-MES Mobile Electric Skid

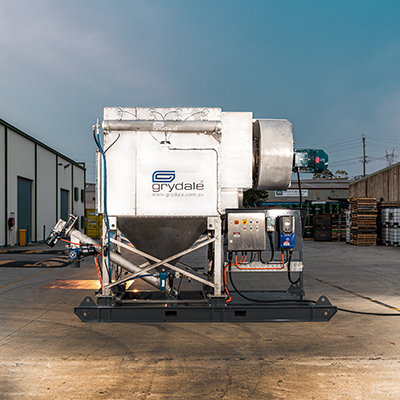

JMS-10-MES Mobile Electric Skid

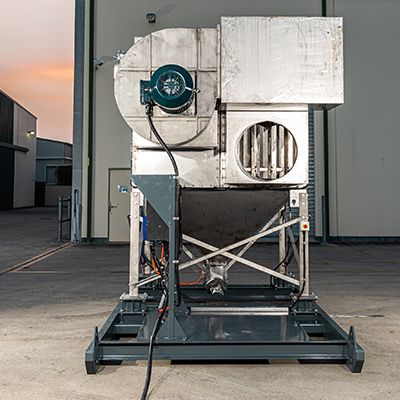

JMS-10-MES Mobile Electric Skid Dust Collector
